Mil 샘플-Mod_1개의 모델 찾기

필요 라이선스 : MXRT xxGxxx 000  : Geometric Model Finder
기능 : 모델파인드를 이용하여 1개의 모델 찾기
목적 : Mil의 샘플프로그램 코드를 참조하여 코드 작성 없이 테스트용 프로그램으로 적용하는 방법 구현

모델 등록하기

1. 파일 열기 :  C:\Program Files\Matrox Imaging\Images\SingleModel.mim
2. 이미지로 선택
3. Define(적용)
4. 속도 : 아주 빠르게
5. 준비

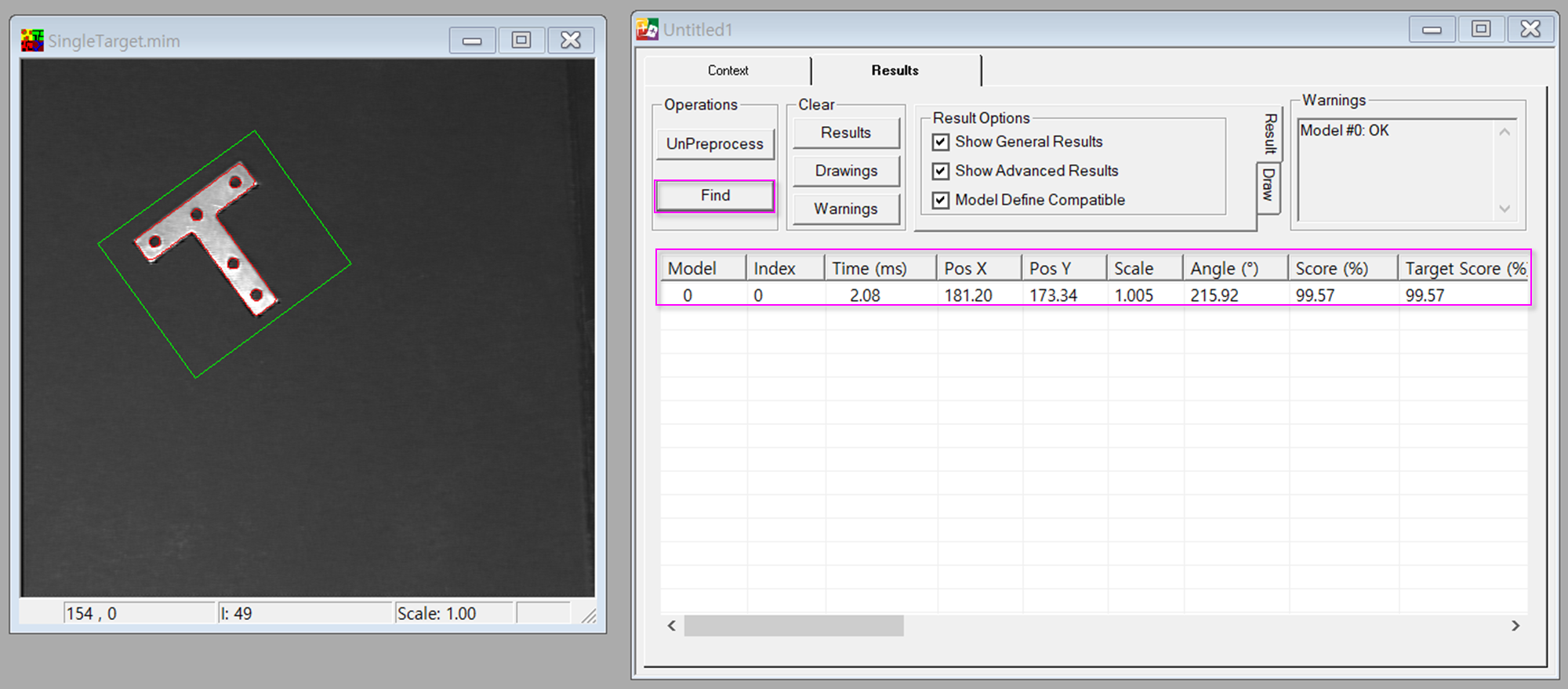

테스트

1. 파일 열기 :  C:\Program Files\Matrox Imaging\Images\SingleTarget.mim
2. 검색



샘플 코드

//*****************************************************************************
        // Single model example.
        //
        // Source MIL image file specifications.
        private const string SINGLE_MODEL_IMAGE = MIL.M_IMAGE_PATH + "SingleModel.mim";

        // Target MIL image file specifications.
        private const string SINGLE_MODEL_TARGET_IMAGE = MIL.M_IMAGE_PATH + "SingleTarget.mim";

        //Search speed: M_VERY_HIGH for faster search, M_MEDIUM for precision and robustness.
        private const int SINGLE_MODEL_SEARCH_SPEED = MIL.M_VERY_HIGH;

        // Model specifications.
        private const int MODEL_OFFSETX = 176;
        private const int MODEL_OFFSETY = 136;
        private const int MODEL_SIZEX = 128;
        private const int MODEL_SIZEY = 128;
        private const int MODEL_MAX_OCCURRENCES = 16;

        static void SingleModelExample(MIL_ID MilSystem, MIL_ID MilDisplay)
        {
            MIL_ID MilImage = MIL.M_NULL;                               // Image buffer identifier.
            MIL_ID GraphicList = MIL.M_NULL;                            // Graphic list indentifier.
            MIL_ID MilSearchContext = MIL.M_NULL;                       // Search context.
            MIL_ID MilResult = MIL.M_NULL;                              // Result identifier.
            double ModelDrawColor = MIL.M_COLOR_RED;                    // Model draw color.
            MIL_INT[] Model = new MIL_INT[MODEL_MAX_OCCURRENCES];               // Model index.
            MIL_INT NumResults = 0;                                         // Number of results found.

            double[] Score = new double[MODEL_MAX_OCCURRENCES];         // Model correlation score.
            double[] XPosition = new double[MODEL_MAX_OCCURRENCES];     // Model X position.
            double[] YPosition = new double[MODEL_MAX_OCCURRENCES];     // Model Y position.
            double[] Angle = new double[MODEL_MAX_OCCURRENCES];         // Model occurrence angle.
            double[] Scale = new double[MODEL_MAX_OCCURRENCES];         // Model occurrence scale.
            double Time = 0.0;                                          // Bench variable.
            int i = 0;                                                  // Loop variable.

            // Restore the model image and display it.
            MIL.MbufRestore(SINGLE_MODEL_IMAGE, MilSystem, ref MilImage);
            MIL.MdispSelect(MilDisplay, MilImage);

            // Allocate a graphic list to hold the subpixel annotations to draw.
            MIL.MgraAllocList(MilSystem, MIL.M_DEFAULT, ref GraphicList);

            // Associate the graphic list to the display for annotations.
            MIL.MdispControl(MilDisplay, MIL.M_ASSOCIATED_GRAPHIC_LIST_ID, GraphicList);

            // Allocate a Geometric Model Finder context.
            MIL.MmodAlloc(MilSystem, MIL.M_GEOMETRIC, MIL.M_DEFAULT, ref MilSearchContext);

            // Allocate a result buffer.
            MIL.MmodAllocResult(MilSystem, MIL.M_DEFAULT, ref MilResult);

            // Define the model.
            MIL.MmodDefine(MilSearchContext, MIL.M_IMAGE, MilImage, MODEL_OFFSETX, MODEL_OFFSETY, MODEL_SIZEX, MODEL_SIZEY);

            // Set the search speed.
            MIL.MmodControl(MilSearchContext, MIL.M_CONTEXT, MIL.M_SPEED, SINGLE_MODEL_SEARCH_SPEED);

            // Preprocess the search context.
            MIL.MmodPreprocess(MilSearchContext, MIL.M_DEFAULT);

            // Draw box and position it in the source image to show the model.
            MIL.MgraColor(MIL.M_DEFAULT, ModelDrawColor);
            MIL.MmodDraw(MIL.M_DEFAULT, MilSearchContext, GraphicList,
                     MIL.M_DRAW_BOX + MIL.M_DRAW_POSITION, 0, MIL.M_ORIGINAL);

            // Pause to show the model.
            Console.Write("\nGEOMETRIC MODEL FINDER:\n");
            Console.Write("-----------------------\n\n");
            Console.Write("A model context was defined with the model in the displayed image.\n");
            Console.Write("Press <Enter> to continue.\n\n");
            Console.ReadKey();

            // Clear annotations.
            MIL.MgraClear(MIL.M_DEFAULT, GraphicList);

            // Load the single model target image.
            MIL.MbufLoad(SINGLE_MODEL_TARGET_IMAGE, MilImage);

            // Dummy first call for bench measure purpose only (bench stabilization, cache effect, etc...). This first call is NOT required by the application.
            MIL.MmodFind(MilSearchContext, MilImage, MilResult);

            // Reset the timer.
            MIL.MappTimer(MIL.M_DEFAULT, MIL.M_TIMER_RESET + MIL.M_SYNCHRONOUS, MIL.M_NULL);

            // Find the model.
            MIL.MmodFind(MilSearchContext, MilImage, MilResult);

            // Read the find time.
            MIL.MappTimer(MIL.M_DEFAULT, MIL.M_TIMER_READ + MIL.M_SYNCHRONOUS, ref Time);

            // Get the number of models found.
            MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_NUMBER + MIL.M_TYPE_MIL_INT, ref NumResults);

            // If a model was found above the acceptance threshold.
            if ((NumResults >= 1) && (NumResults <= MODEL_MAX_OCCURRENCES))
            {
                // Get the results of the single model.
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_INDEX + MIL.M_TYPE_MIL_INT, Model);
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_POSITION_X, XPosition);
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_POSITION_Y, YPosition);
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_ANGLE, Angle);
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_SCALE, Scale);
                MIL.MmodGetResult(MilResult, MIL.M_DEFAULT, MIL.M_SCORE, Score);

                // Print the results for each model found.
                Console.Write("The model was found in the target image:\n\n");
                Console.Write("Result   Model   X Position   Y Position   Angle   Scale   Score\n\n");
                for (i = 0; i < NumResults; i++)
                {
                    Console.Write("{0,-9}{1,-8}{2,-13:0.00}{3,-13:0.00}{4,-8:0.00}{5,-8:0.00}{6,-5:0.00}%\n", i, Model[i], XPosition[i], YPosition[i], Angle[i], Scale[i], Score[i]);
                }
                Console.Write("\nThe search time is {0:0.0} ms\n\n", Time * 1000.0);

                // Draw edges, position and box over the occurrences that were found.
                for (i = 0; i < NumResults; i++)
                {
                    MIL.MgraColor(MIL.M_DEFAULT, ModelDrawColor);
                    MIL.MmodDraw(MIL.M_DEFAULT, MilResult, GraphicList, MIL.M_DRAW_EDGES + MIL.M_DRAW_BOX + MIL.M_DRAW_POSITION, i, MIL.M_DEFAULT);
                }
            }
            else
            {
                Console.Write("The model was not found or the number of models found is greater than\n");
                Console.Write("the specified maximum number of occurrence !\n\n");
            }

            // Wait for a key to be pressed.
            Console.Write("Press <Enter> to continue.\n\n");
            Console.ReadKey();

            // Free MIL objects.
            MIL.MgraFree(GraphicList);
            MIL.MbufFree(MilImage);
            MIL.MmodFree(MilSearchContext);
            MIL.MmodFree(MilResult);

        }
